An IDMT (Inverse Definite Minimum Time) relay is a type of protective relay widely used in electrical power systems for overcurrent protection. The key feature of IDMT relays is that their operating time varies inversely with the magnitude of the current. This means that the higher the current flowing through the relay, the faster it will operate. However, the relay also has a definite minimum time characteristic, which ensures that it will not operate instantly but within a predetermined time range.
Key Characteristics and Operation
Inverse Time Characteristic: The relay's operating time is inversely proportional to the fault current. If the current is only slightly above the relay’s setting, it will take longer to trip. Conversely, if the current is much higher than the setting, the relay will trip much faster.
Definite Minimum Time: Despite the inverse time characteristic, there is a minimum time limit, below which the relay will not operate. This ensures coordination with other protection devices, allowing time for downstream devices to clear faults closer to them before the IDMT relay operates.
Application: IDMT relays are typically used in the protection of transmission lines, transformers, and other critical electrical equipment. They are especially useful in systems where the fault current can vary significantly.
Time-Current Characteristics: IDMT relays can have various time-current characteristics, such as Standard Inverse, Very Inverse, and Extremely Inverse. These characteristics are selected based on the specific protection needs and coordination requirements of the power system.
Coordination: One of the significant advantages of IDMT relays is their ability to coordinate with other relays in a power system. By adjusting the time and current settings, engineers can ensure that the relay closest to the fault operates first, with others operating sequentially if necessary.
Types of IDMT Relays
Electromechanical IDMT Relays: These are the traditional types, where the inverse time characteristic is achieved mechanically through rotating discs and electromagnets.
Digital and Numerical IDMT Relays: Modern IDMT relays are digital or numerical, offering more precise settings, flexibility, and additional features like communication capabilities, self-diagnosis, and data logging.
Practical Considerations
Setting: The proper setting of an IDMT relay is critical for ensuring effective protection. The current setting (pickup value) and time multiplier setting (TMS) need to be carefully chosen based on the system’s load and fault levels.
Testing and Maintenance: Regular testing and maintenance are necessary to ensure the relay's proper functioning. Testing involves checking the relay's time-current characteristics to verify that it operates within the desired time limits under different fault conditions.
Advantages
Selectivity and Coordination: IDMT relays allow for selectivity in the protection system, ensuring that only the faulty section is isolated without affecting the rest of the system.
Adaptability: They are versatile and can be adapted to different fault conditions and system requirements.
Reliability: These relays are highly reliable, providing dependable protection in diverse electrical environments.
Conclusion
The IDMT relay is a crucial component in electrical protection systems, offering a balance between sensitivity to fault conditions and the ability to coordinate with other protection devices. Its inverse time characteristic ensures that it responds faster to severe faults, while its definite minimum time feature prevents unnecessary tripping during minor overcurrent conditions. As electrical systems continue to evolve, IDMT relays remain a vital tool in ensuring the stability and safety of power networks.
Digital IDMT relays are advanced versions of the traditional IDMT (Inverse Definite Minimum Time) relays, offering enhanced functionality, precision, and flexibility in modern power protection systems. These relays utilize digital technology to perform overcurrent protection with the inverse time characteristic, ensuring reliable and efficient operation in various electrical networks.
Key Features of Digital IDMT Relays
Precision and Accuracy: Digital IDMT relays provide precise control over current and time settings. Unlike their electromechanical counterparts, digital relays can accurately measure the fault current and compute the exact operating time, reducing the risk of incorrect tripping.
Programmability: These relays are programmable, allowing users to set various protection parameters such as current settings, time multiplier settings (TMS), and curve characteristics (e.g., Standard Inverse, Very Inverse, Extremely Inverse). This flexibility enables better coordination with other protection devices in the system.
Multiple Protection Functions: Besides overcurrent protection, digital IDMT relays often include additional protection functions like short-circuit protection, earth fault protection, and phase unbalance protection. This multi-functionality makes them highly versatile for protecting different parts of the electrical network.
Self-Monitoring and Diagnostics: Digital relays are equipped with self-diagnostic features that continuously monitor their own performance and condition. They can detect internal faults or malfunctions and alert the system operator, enhancing the overall reliability of the protection system.
Communication Capabilities: Digital IDMT relays typically include communication ports and support various communication protocols (e.g., Modbus, IEC 61850) that allow them to integrate into SCADA (Supervisory Control and Data Acquisition) systems. This enables remote monitoring, control, and configuration, which is essential for modern smart grids.
Data Logging and Analysis: These relays have built-in memory for data logging, allowing them to store information on fault events, relay settings, and operational history. This data can be retrieved for analysis to improve system performance, troubleshoot issues, and optimize protection settings.
User Interface: Digital IDMT relays often feature user-friendly interfaces, including LCD screens and keypad controls, making it easier for engineers and technicians to configure, monitor, and operate the relay. Some relays also offer software tools for configuration via a computer.
Advantages of Digital IDMT Relays
Enhanced Protection and Coordination: With precise time-current characteristics and programmable settings, digital IDMT relays provide superior protection and coordination, reducing the likelihood of unnecessary tripping and enhancing system stability.
Flexibility and Adaptability: These relays can be adapted to various system configurations and fault conditions, offering a wide range of protection curves and settings that can be tailored to specific needs.
Reduced Maintenance: Digital relays have fewer moving parts compared to electromechanical relays, resulting in lower maintenance requirements and a longer operational lifespan.
Scalability: The ability to communicate with other devices and systems makes digital IDMT relays scalable and suitable for integration into larger, more complex power systems.
Applications
Digital IDMT relays are used in various applications, including:
- Power Generation: Protecting generators, transformers, and auxiliary systems in power plants.
- Transmission and Distribution Networks: Providing protection for transmission lines, substations, and distribution feeders.
- Industrial and Commercial Installations: Safeguarding electrical systems in industrial plants, commercial buildings, and critical infrastructure.
Conclusion
Digital IDMT relays represent a significant advancement in power system protection, combining the proven principles of inverse time protection with the benefits of digital technology. Their precision, programmability, and additional features make them essential for modern electrical networks, ensuring both reliability and efficiency in protecting critical power assets. As the power industry continues to evolve, digital IDMT relays will remain at the forefront of protective relay technology, supporting the transition to smarter, more resilient grids.
👆👆👆👆👆

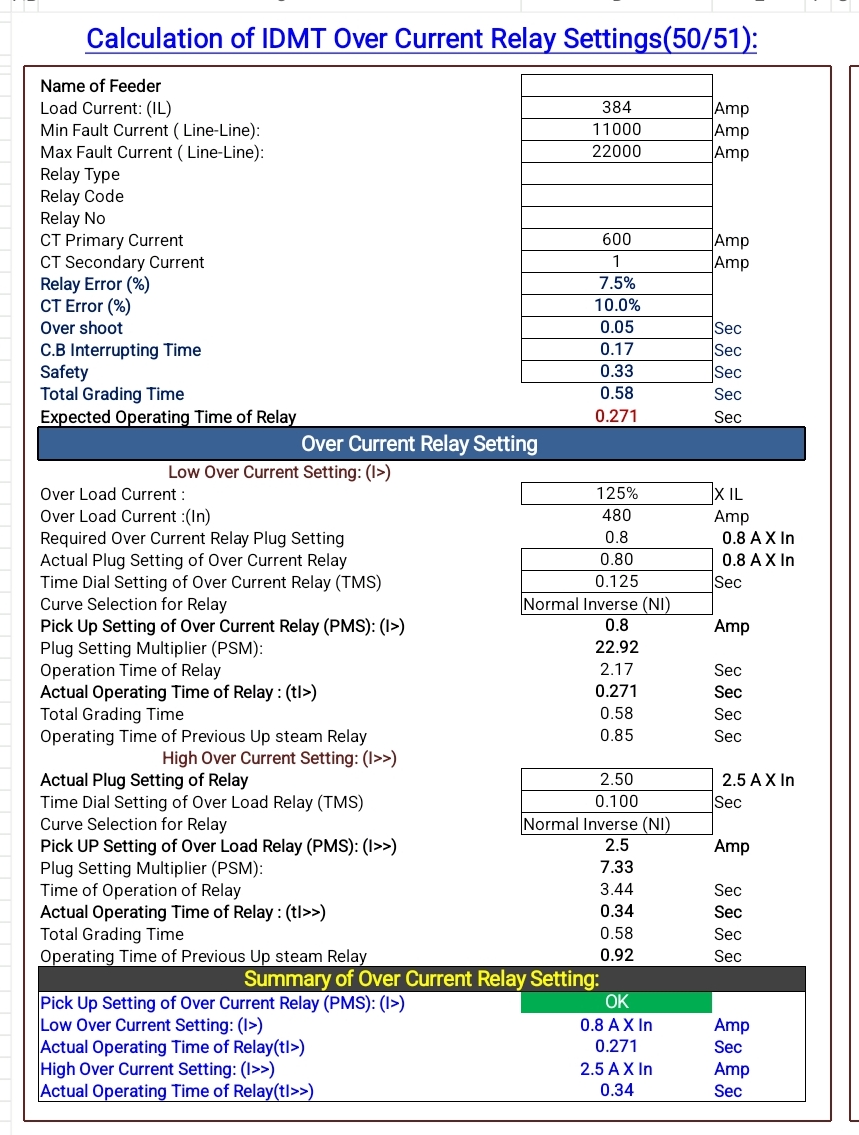

ReplyDeleteHow to download this spreadsheet
